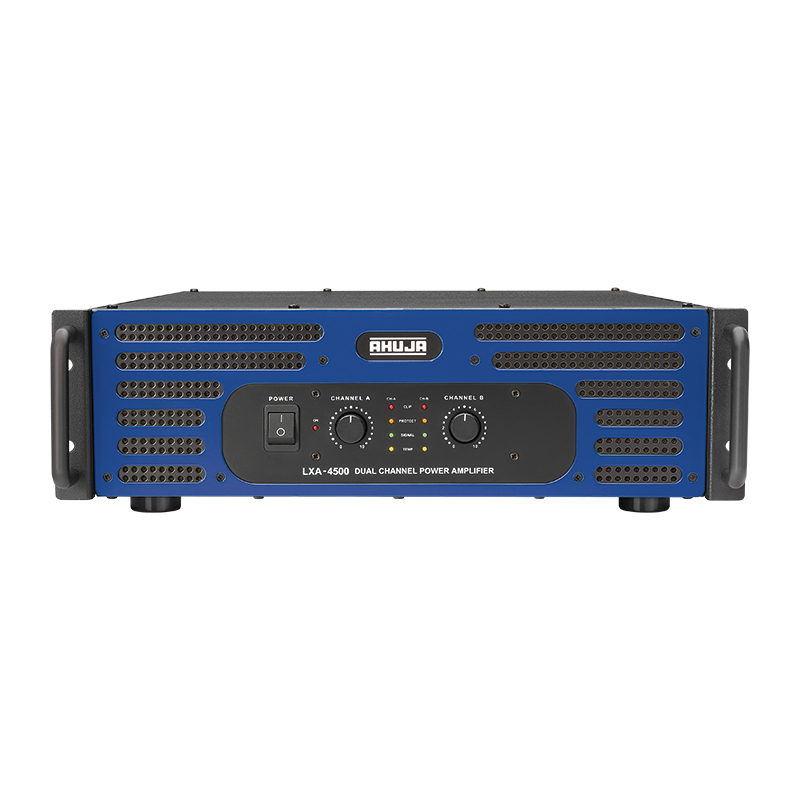

LXA-4500

Description

Dual channel direct coupled amplifier.
4500 Watts rated output.
Rugged and most reliable. A new benchmark for professionals requiring a sonically superior high power amplifier.
80Hz / 120Hz LPF.
Built-in circuit for HF protection.
Limiter ON/OFF.
Two selectable input sensitivities.
Class H operation for optimum efficiency.

Continuous Rated Power	.
Stereo/Mono	8Ω : 1000W + 1000W RMS, 4Ω : 1550W + 1550W RMS, 2Ω : 2250W + 2250W RMS
Bridged Output	8Ω : 3100W, 4Ω : 4500W
THD + N	< 1.0%
Frequency Response (-1dB)	20-20,000Hz
Low Pass Filter	80/120Hz @ 24dB per octave
Power Bandwidth (0.5% THD)	20-20,000Hz
Input Sensitivity	0dBu (775mV) & 4dBu (1.23V) (Selectable)
Input Impedance	10k Unbalanced, 20k Balanced
signal to noise Ratio	> 95dB
Channel Separation	> 65dB at 1kHz
Damping Factor	400 : 1 (8Ω)
Slew Rate	35V/µs
Protections	Temperature, DC, RFI, Short Circuit, Overload, Built-in Limiter (ON/OFF) AC: Circuit Protector 20A; ± DC: Fuse 2 x 25Amp. (T 25A L) for each zone, Fuse 2×3 Amp. (T 3A L)
Input Connectors	2 × XLR, Stereo Phone Jack 6.3mm
Output Connectors	Speakon 4-Way and heavy duty Binding Post for each channel
Cooling	Variable Speed DC Fan with Temperature Sensing
Front Panel Controls	2 × 41 Step Level Attenuators
Indicators	Power ON, Signal, Clip, Temperature, Protect (Ch. A & B
Power Consumption (Rated)	5400VA @ 220-240V ~ 50/60Hz
Dimensions	W482 × H153 × D580mm
Weight	36.50kg
